Product Overview

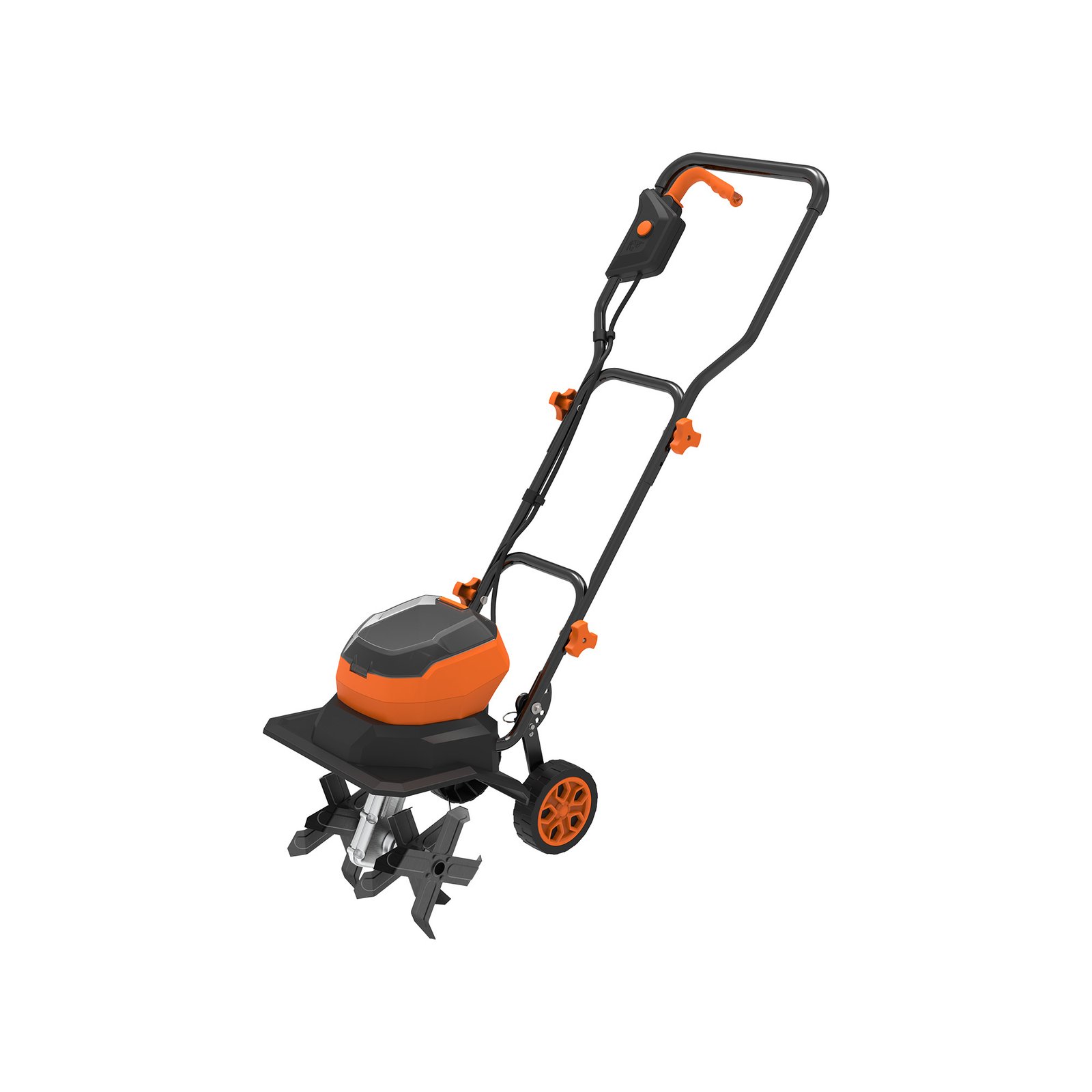

The CYCTL01B 2x20V Cordless Electric Garden Tiller & Cultivator is an economical and highly efficient soil preparation tool designed for vegetable plots, flower beds, home gardens, and nursery management. Powered by a dual 20V battery platform (equivalent to a 40V system output) and a high-torque brushed motor, this cultivator produces a steady 140 rpm tine rotation speed to break up compacted soil, mix in organic compost, and clear weed roots. Featuring a 300mm tilling width, a maximum working depth of 200mm, four durable steel blades, and an IPX4 splash-proof safety rating, the CYCTL01B delivers reliable performance and exceptional cost-efficiency for international garden tool importers and distributors.
Key Features & Selling Points
- Dual 20V Cordless Power System: Powered by two 20V lithium-ion batteries (compatible with 2.0Ah and 4.0Ah packs) for true cordless freedom across garden beds and allotments.
- Cost-Effective High-Torque Brushed Motor: Delivers dependable 140 rpm tilling power, offering an attractive price-to-performance balance for retail markets.
- 300mm Compact Working Width: Perfectly sized to maneuver through narrow vegetable rows, flower borders, and tight garden spaces without damaging adjacent crops.
- Deep Soil Penetration: Tills down to a maximum depth of 200mm for thorough soil aeration, weed root clearance, and fertilizer integration.
- 4-Blade Steel Tine Assembly: Four heavy-duty steel blades pulverize soil clods smoothly for ideal seedbed preparation.
- IPX4 Waterproof Protection: IPX4 rating guards the motor housing and switch assembly against splashing water and damp garden conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CYCTL01B |
| Voltage | 2x20V (2.0Ah / 4.0Ah Compatible) |
| Motor Type | Brushed |
| No Load Speed | 140 rpm |
| Working Width | 300 mm |
| Working Depth | Max. 200 mm |
| Number of Blades | 4 pcs |
| IP Class | IPX4 |
| Container Loading (20FT/40FT/40HQ) | 380 / 780 / 920 pcs |
Wide Applications
- Home Vegetable Plots: Easily break up soil clods and prepare fine seedbeds for planting crops, tomatoes, and greens.
- Flower Borders & Nurseries: Cultivate compact flower beds and loosen soil around delicate plants without root damage.
- Soil Aeration & Fertilizer Blending: Efficiently churn compost, peat, and manure deep into the soil structure.
- Inter-Row Weed Clearance: Clear surface weeds and aerate soil between narrow crop rows.
OEM/ODM Customization Capabilities
We specialize in private label manufacturing and custom engineering for global distributors:
- Custom Machine Housing: Specialized plastic injection molding according to your brand’s Pantone color standards.
- Branding & Logo Application: High-durability laser marking and silk-screen printing on machine body, handlebars, and blade guard.
- Battery & Charger Bundles: Custom battery capacity options (2.0Ah / 4.0Ah) with localized charger plugs (VDE, BS, SAA, UL).
- Retail Packaging Design: Customized color boxes, mail-order packaging, and multi-language instruction manuals.
Why Choose Us
- Certified Quality Standards: Built to meet CE, GS, EMC, RoHS, and IPX4 international electrical safety compliance.
- Proven Manufacturing Reliability: Strict quality control across motor load tests, gearbox durability, and battery interface compatibility.
- High Shipping Freight Efficiency: Compact packaging dimensions maximize container loading up to 920 units per 40HQ container, lowering per-unit transport costs.
FAQ
Q1: What battery capacities work with the CYCTL01B tiller?
The CYCTL01B operates on a dual 20V battery platform and is fully compatible with both 2.0Ah and 4.0Ah lithium-ion battery packs.
Q2: What is the main difference between model CYCTL01B and CYCTL01A?
CYCTL01B utilizes a robust brushed motor providing high cost-efficiency, whereas CYCTL01A features a brushless motor design. Both models share matching tilling dimensions (300mm width, 200mm depth).
Q3: What is the tilling capability of this machine?
The tiller provides a 300mm tilling width and penetrates up to 220mm into the ground, driven by 4 steel blades rotating at 140 rpm.
Q4: Is the CYCTL01B protected against outdoor moisture?
Yes, the machine carries an IPX4 splash-proof rating, protecting internal electrical components from water splashes during damp garden work.
Q5: What are the container loading quantities for wholesale orders?
Standard container loading capacity is 380 units for a 20FT container, 780 units for a 40FT container, and 920 units for a 40HQ high-cube container.
