4-in-1 Electric Garden Multi-Tool Set 1000W (HKPMT05B)

Product Overview:

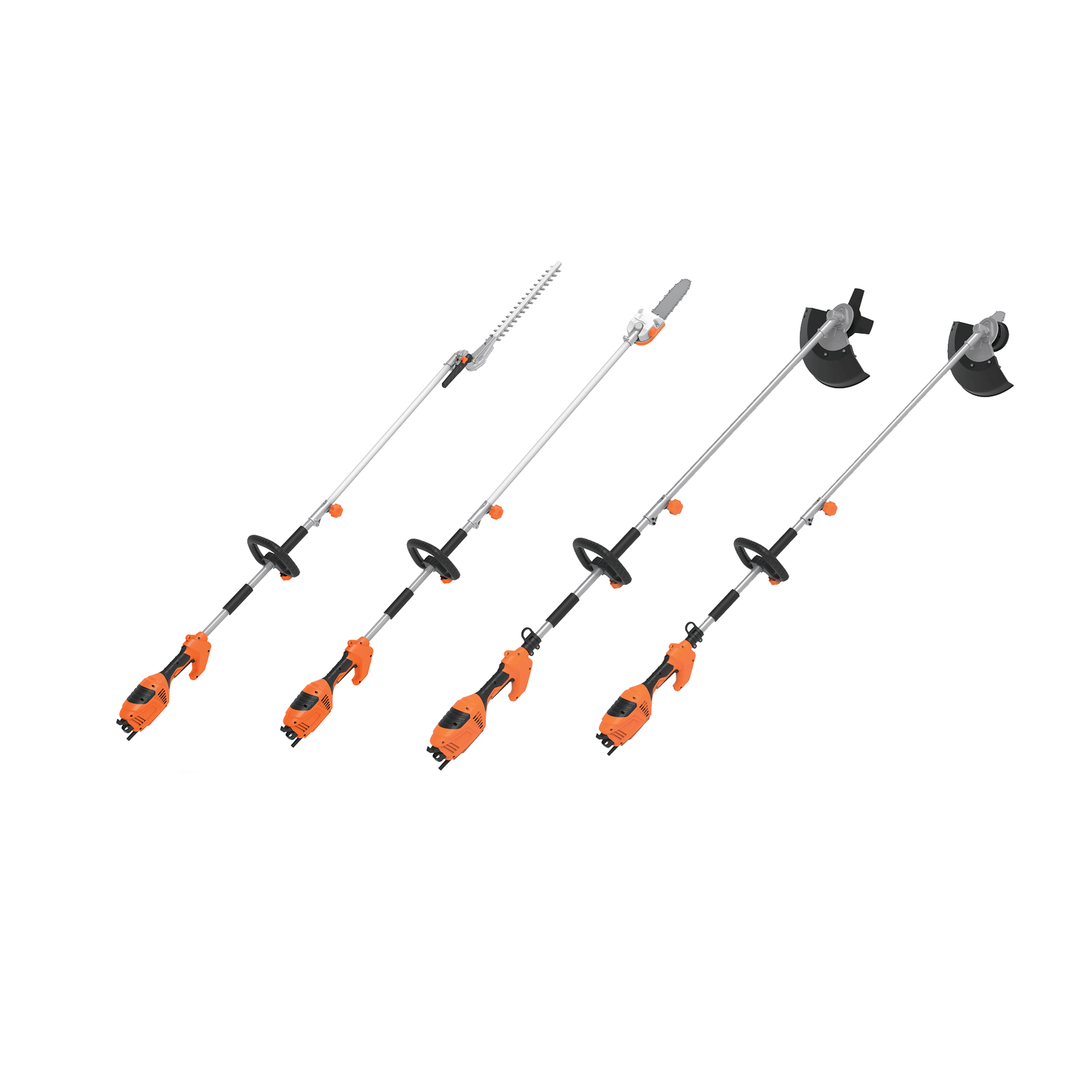

Simplify your garden maintenance with the ultimate all-in-one landscaping solution: the 4-in-1 Electric Multi-Tool Series (HKPMT05B + HKPHT05). Powered by a robust 900W / 1,000W motor, this versatile system seamlessly converts between a Grass Trimmer, Brush Cutter, Pole Hedge Trimmer, and Pole Saw/Pruner. Featuring premium components like Oregon chain/bar options, 65Mn laser-cut hedge blades with rotary heads, and a Tap & Go line feed, it equips homeowners and professionals to handle every outdoor trimming task with a single power head.

Key Features & 4-in-1 Attachments:

• High-Torque Power Head (900W / 1,000W): Operates on 230-240V~50Hz power, delivering abundant driving torque for all 4 quick-change attachments.
• Pole Hedge Trimmer Attachment (PHT): 410mm 65Mn laser-cut dual-action blade with an aluminum press bar, rotary angle-adjustable cutting head, and 20mm max cutting width for tall bushes.
• Pole Chainsaw / Pruner Attachment (PS): Features 8″ or 10″ bar & chain options (Chinese or premium Oregon), 13m/s chain speed, and a 100ml auto-lubricating oil tank for high-reach branch pruning.
• Grass Trimmer Attachment (GT): 380mm wide cutting swath, 5,000 rpm no-load speed, equipped with 2.0mm x 5.5m line and a convenient “Tap & Go” line feed system.
• Brush Cutter Attachment (BC): Heavy-duty 230mm cutting diameter blade operating at 5,600 rpm for clearing dense weeds, thickets, and light brush.

Technical Specifications (Data Sheet):

• Model: HKPMT05B + HKPHT05
• Voltage / Frequency: 230-240V ~ 50Hz
• Rated Power: 900 / 1,000W
• Pole Hedge Trimmer (PHT):
  • No Load Speed: 1,000 rpm
  • Cutting Length: 410 mm
  • Max Cutting Width: 20 mm
  • Blade Material: 65Mn Steel, Laser Cutting, Aluminum Press Bar
  • Cutting Head: Rotary Angle-Adjustable Head
• Pole Chainsaw / Pruner:
  • Chain & Bar: 8″ / 10″ (Chinese / Oregon optional)
  • Chain Speed: 13 m/s
  • Oil Tank Capacity: 100 ml
• Grass Trimmer (GT):
  • No Load Speed: 5,000 rpm
  • Cutting Width: 380 mm
  • Thread Spec: 2.0 mm diameter × 5.5 m length
  • Thread Feed Control: Tap & Go
• Brush Cutter (BC):
  • No Load Speed: 5,600 rpm
  • Cutting Diameter: 230 mm
• Container Loading (20’FT / 40’FT / 40’HQ): 460 pcs / 1,020 pcs / 1,200 pcs

OEM / ODM Customization Capabilities:

We offer flexible private-label manufacturing to suit global market requirements:

• Power & Component Specs: Choose 900W or 1,000W power motors; select 8″ or 10″ bars with Chinese or genuine Oregon chains.
• Housing Color & Branding: Customized plastic housing color matching (Pantone) and logo application via silk-screen printing or mold embossing.
• Plug & Cable Configuration: Regional power cords certified with VDE, BS, SAA, or UL to meet local electrical safety codes.
• Bespoke Retail Packaging: Full 4-color custom display box design, user manuals, and shipping carton branding.

Why Choose Us?

1. Certified Quality Assurance: Manufactured under ISO9001 guidelines and fully certified with CE, GS, and EMC standards for low warranty returns.
2. Factory-Direct Cost Advantage: One power head with 4 attachments lowers tooling, manufacturing, and inventory costs for distributors.
3. High-Grade Components: Partnership with top-tier component suppliers (e.g., Oregon bars/chains) enhances your brand’s reputation.
4. Optimized Logistics & Shipping: Compact combo packaging ensures safe transit while maximizing container space (1,200 sets / 40HQ).

FAQ

Q1: What 4 functions are included in the HKPMT05B + HKPHT05 multi-tool set?
A: This combination set includes one main power head (900W/1000W) and four interchangeable attachments: Grass Trimmer (GT), Brush Cutter (BC), Pole Hedge Trimmer (PHT), and Pole Saw/Pruner (PS).

Q2: What bar and chain options are available for the pole chainsaw attachment?
A: We offer both 8-inch and 10-inch bar choices, equipped with either standard Chinese chains or high-performance genuine Oregon chains/bars based on your target market positioning.

Q3: How does the Tap & Go thread feed work on the grass trimmer attachment?
A: The “Tap & Go” system automatically feeds out extra 2.0mm nylon trimming line whenever the user bumps the cutting head gently on the ground while operating at speed, ensuring uninterrupted trimming.

Q4: What is the MOQ and container loading quantity for this 4-in-1 combo set?
A: The standard MOQ for OEM custom branding is 500 sets. Container loading capacities are 460 sets for a 20FT, 1,020 sets for a 40FT, and 1,200 sets for a 40HQ container.
