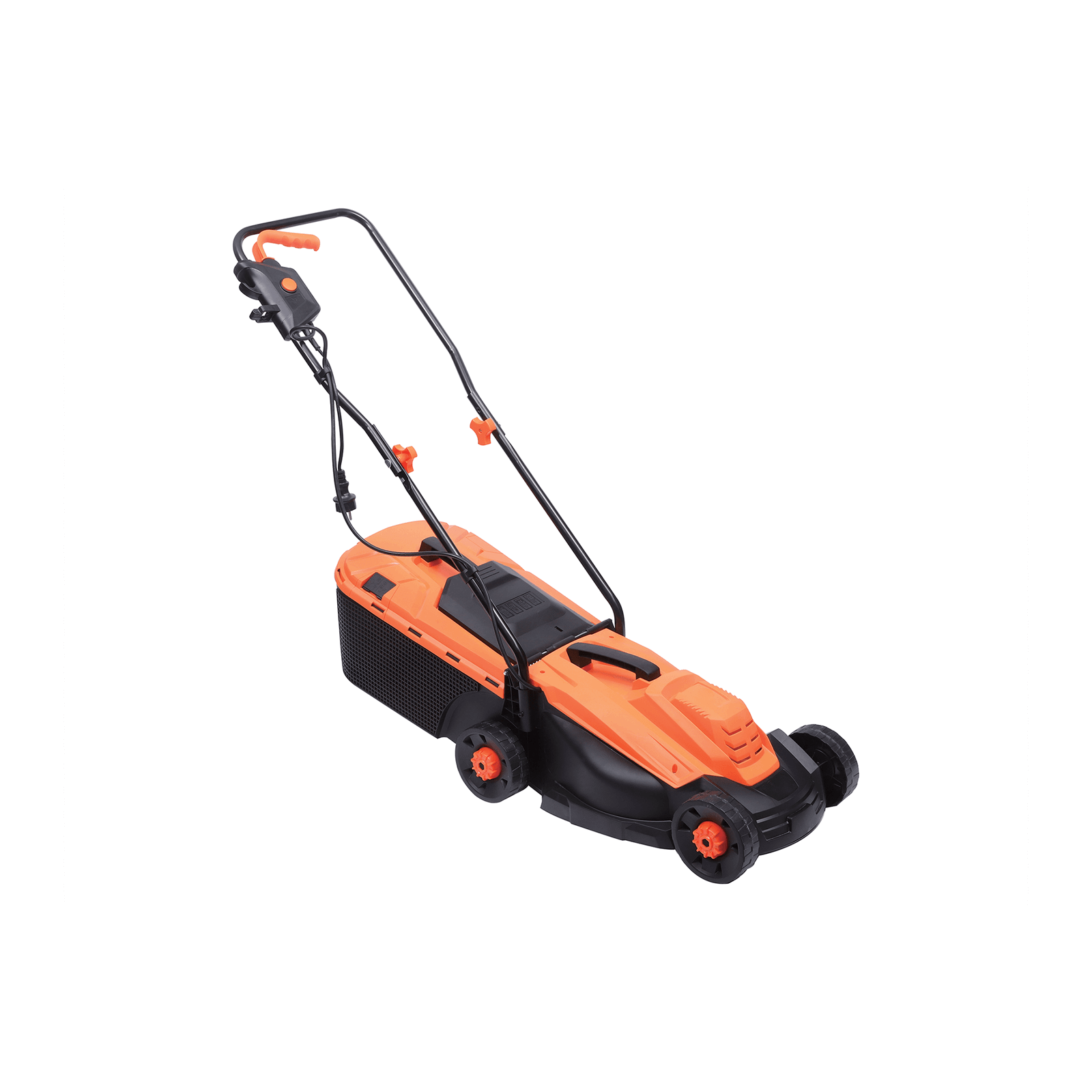

CYLM02 1400W Compact Electric Lawn Mower 320mm Deck

Product Overview:

Deliver effortless lawn care and maximize your shipping profitability with the compact CYLM02 Electric Lawn Mower. Engineered with motor options ranging from 1,200W to 1,400W operating at a fast no-load speed of 3,700 rpm, this agile mower features a motor-protective belt drive transmission system. Equipped with a 320mm cutting deck, a 40MnB manganese-boron steel blade, a 3-position wheel height adjustment (25 / 45 / 65mm), and an impressive container loading capacity of 900 units per 40HQ, model CYLM02 is an ideal high-efficiency product for urban gardens and global distributors.

Key Features:

• High-Torque Motor Lineup (1200W / 1300W / 1400W): Operates on 230-240V~50Hz power, providing 3,700 rpm for swift, clean grass slicing in small to medium yards.
• Motor-Protective Belt Drive System: Smooth belt-driven transmission absorbs unexpected blade impacts from hidden stones or roots, preventing motor shaft damage and extending mower service life.
• Agile 320mm Cutting Deck: Compact width allows easy maneuvering around narrow garden borders, flower beds, and tight yard corners.
• 3-Position Wheel Height Adjustment: Easily adjust mowing height across 3 preset settings (25 / 45 / 65 mm) via individual wheel axle positioning.
• Hardened 40MnB Steel Blade: Heavy-duty blade forged from high-tensile 40MnB manganese-boron steel maintains a durable edge for healthy, crisp grass cuts.
• 30L Spacious Grass Collector: 30-liter collection box catches clippings efficiently to keep lawns tidy.
• Ultra-High Freight Efficiency: Engineered compact design allows up to 900 units in a 40HQ container, dramatically lowering per-unit ocean shipping costs.

Technical Specifications (Data Sheet):

• Model: CYLM02
• Voltage / Frequency: 230-240V ~ 50Hz
• Rated Power: 1,200 / 1,300 / 1,400W
• No-Load Speed: 3,700 rpm
• Brake System: Friction / Centrifugal Brake
• Power Transmission: Belt Drive
• Cutting Width: 320 mm
• Cutting Height: 25 / 45 / 65 mm
• Cutting Height Setting: 3 position, Wheel Adjustment
• Blade Material: 40MnB Manganese-Boron Steel
• Collector Volume: 30 L
• Front Wheel Size: 140 mm
• Rear Wheel Size: 140 mm
• Container Loading (20’FT / 40’FT / 40’HQ): 336 pcs / 756 pcs / 900 pcs

OEM / ODM Customization Capabilities:

We offer complete end-to-end manufacturing and private-labeling solutions tailored to your brand requirements:

• Power & Cable Specs: Choose 1200W, 1300W, or 1400W motor ratings; regional power cords certified with VDE, BS, SAA, or UL.
• Housing Color & Branding: Custom plastic deck/housing color matching (Pantone) and logo application via silk-screen printing or mold embossing.
• Grass Box Customization: Fabric, hybrid, or hard plastic collector boxes with custom brand logo printing.
• Bespoke Retail Packaging: Full 4-color custom display box design, user manuals, and shipping carton branding.

Why Choose Us?

1. Certified Quality Assurance: Manufactured under ISO9001 guidelines and fully certified with CE, GS, and EMC standards for low warranty return rates.
2. Factory-Direct Cost Advantage: Direct manufacturing scale delivers highly competitive wholesale pricing and higher margins for distributors.
3. Maximum Logistics Profitability: Industry-leading loading density (900 units / 40HQ) provides massive sea freight savings per unit.
4. Motor Protection & Durability: Belt drive system dramatically reduces jobsite motor burnouts, enhancing your brand’s quality reputation.

FAQ

Q1: How does the Belt Drive power transmission protect the mower’s motor?
A: Unlike direct-drive mowers where obstacle impacts travel straight into the motor shaft, the belt drive system absorbs shock loads when hitting rocks or roots, preventing motor shaft distortion and burnout.

Q2: How do you adjust the cutting height on model CYLM02?
A: Cutting height is adjusted across 3 positions (25mm, 45mm, 65mm) by positioning the wheel axles into the corresponding height slots on the mower deck.

Q3: Can we customize our own brand logo, deck color, and retail packaging?
A: Yes! We provide complete OEM/ODM services including custom plastic housing colors, silk-screened logos, regional power plugs, and bespoke 4-color retail box designs.

Q4: What is the Minimum Order Quantity (MOQ) and container load for CYLM02?
A: The standard MOQ for custom branding is 300–500 units. Container loading capacities are 336 pcs for 20FT, 756 pcs for 40FT, and an impressive 900 pcs for a 40HQ container.
